Summary of Machines Assorted
  1. Cutter Grinder. Five different models prices from $1,750.00
  2. Cutter/Bevellers. Three different models. Prices from $825.00
  3. Engravers. Over 40 different models including pantograph, flexible shaft & computers. Prices start from $120.00
  4. Vinyl Cutters over 30 different models. Prices from $905.00

    Please contact us and nominate the type of machine required and the industry and we can send you further information and a quote on the equipment best suited.

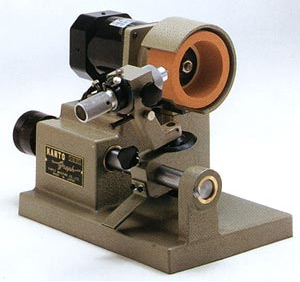

Cutter-Grinder G-90

The G-90 was developed exclusively for Kantographs and the grinding angle can be adjusted freely through 180 degrees allowing cutter edge to be ground to the desired angle. The same type of quiet, long service life induction motor as that used for Kantographs is employed.

Grinding tends to generate a lot of dust, but as the motor of the G-90 is totally sealed, it gives constantly unchanging excellent performance, unaffected by dust.

The diamond wheel, an optional accessory, is available to grind extremely hard steel cutters.

Wheel revolution speed     2,650rpm
Motor     100V 90W
Dimensions     400(W) x 280(L) x 290(H)mm
Net weight     20kg
Wheel size     O.D. 100ø x 50
Packing size & weight     290(W) x 440(L) x 360(H)mm/22.7kg

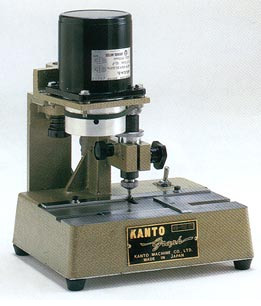

Beveling Machine for Engraved Work KB-150

The Kanto Beveler KB-150 is used for engraving and for bevelling engraved work.

The machine can be used for any size of work, large or small, and is so simple to operate anybody can use it with ease.

Bevelled engraving exposes the substrate material around the periphery, thus enhancing the value of the plate still further. A wide range of styles are available to suit all application requirements.

Spindle 10,500rpm
Cutter  ø4mm straight shaft 2 flute 90° tip
(from cutter tip to frame)15mm max.
Motor 40W 3,000rpm
Dimensions 210(W) x 180(L) x 250(H)mm
Net weight 8.7kg
Packing size & weight 230(W) x 210(L) x 305(H)mm/19.1kg

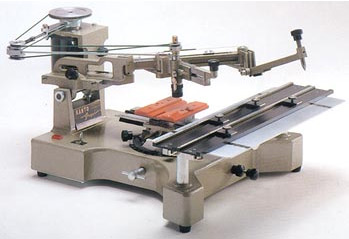

Popular, Compact Engraving Machine PM-3

This model is capable of deep engraving on plastic and metal materials. Basically it is a P type series model equipped with a motor and spindle. This is the most popular general purpose model in the P series featuring low price and excellent all-round performance.

The PM-3 has a very wide application range extending from personal accessories to machinery components, display plaques for electrical equipment, sign boards in hotels and stores, key holders, lighters, watches and so on.

By fitting the diamond point attachment (POINTS) this machine can effect the same smooth diamond engraving performance as the P model. The PM-3 is extremely easy to operate, even inexperienced workers, children and so on can engrave attractive letters, marks etc. on all types of objects.

Pantograph 1/2 to 1/7 in 21 stages
Spindle 15,000rpm 3ø straight shaft
Vice (Max. opening)  170mm
(Max. forward-back movement)     140mm
(Max. lateral movement) 60mm
Max. engraving area 200 x 125 at 1/2 setting
(Distance from cutter tip to frame)     67mm
(Distance from cutter tip to BDC of vice)   25.5mm
(Max. clamp width)  160mm
Copy table150 x 400mm
Motor100V 40W
Dimensions 450(W) x 500(L) x 220(H)mm
Net weight 14.9kg
Packing size & weight 565(W) x 620(L) x 350(H)mm/18kg

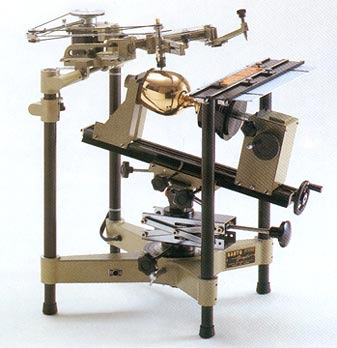

A Specialized Machine for Both Plate and Cup Engraving PM-5C

The structure of the PM-5C is higher than the PM-5 model, this means that it can engrave on objects with a greater overall height (over 150mm).

The pantograph and spindle are the same as those used for the very popular, PM-3 and PM-5 models which have earned a high reputation.

A jack is supplied as standard equipment and the vice can be raised or lowered to bring the workpiece into the correct position accurately and swiftly

Pantograph  1/2 to 1/7 in 21 stages
Spindle  15,000rpm 3ø straight shaft
Vice (Max. opening) 360mm
(Max. forward-back movement) 340mm
(Max. lateral movement) 100mm
Max. engraving area 200 x 125 at 1/2 setting
(Distance from cutter tip to frame)     280mm
(Distance from cutter tip to BDC of vice)     125mm
(Max. clamp width) 360mm
Copy table 150 x 400mm
Motor 100V 40W
Dimensions 450(W) x 470(L) x 610(H)mm
Net weight 41kg
Packing size & weight 550(W) x 750(L) x 720(H)mm/50.5kg

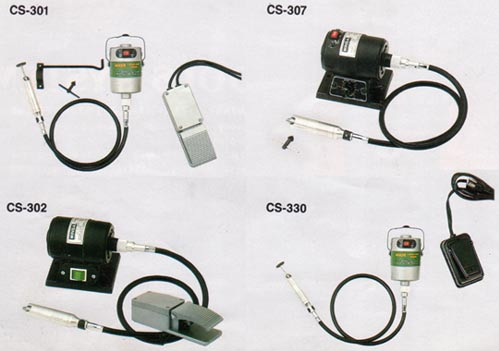

Flexible Shaft Engravers Plus Others
(with full range of accessories)

CS-301 Hanging type of Flexible Shaft Grinder
• 1/3 HP ball bearing motor
• Operates at speed: 500-15000
• Power: 110-125v. or 220-240v.
             1 Ph. 50/60 Hz.
• Chucking capacity: 0-4mm Key chuck
• Include foot pedal for variable control



CS-307 PCB Bench type of Flexible Shaft Grinder
• 1/3 HP ball bearing motor
• Operates at speed: 500-15000
• Power: 110-125v. or 220-240v.
             1 Ph. 50/60 Hz.
• Chucking capacity: 0-4mm Key chuck
• PCB-variable speed control

CS-302 Bench type of Flexible Shaft Grinder
• 1/3 HP ball bearing motor
• Operates at speed: 500-15000
• Power: 110-125v. or 220-240v.
             1 Ph. 50/60 Hz.
• Chucking capacity: 0-4mm chuck
• Include foot pedal for variable control

CS-330 Hanging type of Flexible Shaft Grinder
• 1/3 HP ball bedaring motor
• Operates at speed: 500-18000
• Power: 110-125v. or 220-240v.
             1 Ph. 50/60 Hz.
• Chucking capacity: 0-4mm chuck
• Include foot pedal for variable control



YAR TP

Feature

1. Digital control by the SCM program ensures temperature will be monitored digitally with high precision and sensitivity.
2. LCD displays show the temperature value and time.
3. Easy parameter setting.
4. Integrated electric control system for simply adjusting and maintenance.
5. Dual electric system protection provides safety operation.





Parameter

Heating plate size:|?100mm
Heating power:250W

Application

Digital heat transfer pressing system : Let computer be the platform, process pictures or images from digital camera or scanner, then print them through laser printer. Afterward,you can transfer the pictures or images on the substrate such as ceramic plate, ceramic board, metal plate, mouse pad and so on.
Certification: UL

YAR 15

Introduction

This machine can print any colourful label, human photo and scenery photo in the cap. It is widely used in advertise , gift , publicity ,ect. Meanwhile, as for specialty which has appreciating value and pratical use in whole.

Specification

Current voltage: 220V/110V
Power: 550W
The range of the temperature:0-399??
  Dimension of the package: 75x24x38cm
  Working Table: 9.5cmx15cm
  Range of time: 0-999sec
  Weight: 15KG

Feature

1. Electronic equipment control the temperature, high veracity.
2. The heated thread and heated board are together, safe,durable,distribute uniformity.
3. The electronic equipment control the time, denote the singal when finish.
4. The silicon pastern in the motherboard can endure high temperature, not change the shape until it is 300 centigrade.
5. The heat slice can be heated empty, can keep the constant temperature in 90~100??

YAR TM

Feature

1. Digital control by the SCM program ensures temperature will be monitored digitally with high precision and sensitivity.
2. LCD displays show the temperature value and time.
3. Easy parameter setting.
4. Integrated electric control system for simply adjusting and maintenance.
5. Dual electric system protection provides safety operation.





Parameter

Heating plate size:170x80mm
Heating power: 400W

Application

Digital heat transfer pressing system : Let computer be the platform, process pictures or images from digital camera or scanner, then print them through laser printer. Afterward,you can transfer the pictures or images on the substrate such as cap.

Cetification: UL

YAR 0TM

Feature

1. Digital control by the SCM program ensures temperature will be monitored digitally with high precision and sensitivity.
2. LCD displays show the temperature value and time.
3. Easy parameter setting.
4. Integrated electric control system for simply adjusting and maintenance.
5. Dual electric system protection provides safety operation.

Application

Digital heat transfer pressing system : Let computer be the platform, process pictures or images from digital camera or scanner, then print them through laser printer. Afterward,you can transfer the pictures or images on the substrate such as cap.

Parameter

Heating plate size:150x60mm
Heating power:200W

Certification: UL

YH-80TB

Feature

1. Digital control by the SCM program ensures temperature will be monitored digitally with high precision and sensitivity.
2. LCD displays show the temperature value and time.
3. Easy parameter setting.
4. Integrated electric control system for simply adjusting and maintenance.
5. Dual electric system protection provides safety operation.



Application

Digital heat transfer pressing system : Let computer be the platform, process pictures or images from digital camera or scanner, then print them through laser printer. Afterward,you can transfer the pictures or images on the substrate such as mug .

Parameter

Two types: vertical(YH-80TB) and horizontal(YH-80TBA)
Net weight: 7.3Kg(YH-80TB), 7.9Kg(YH-80TBA)
Heating plate size: ��o|?80x90mm

Certification: UL

YAR 03

Product Description

This american type pyrograph making equipment is the specialized equipment for transferring various heat transference calico paper. It is mainly used to pyrograph, transfer, iron out, heat treat the cloth, and increase fastness between printing paste, frothing paste and cloth. Large-sized heat transference machine is also suitable for heat sublimation transference of team wear, knitted sweater, umbrella, ceramics, glass and metal plate, as well as some elaborate products personally processed.



Specification

Voltage: 220V, 110V
Power: 1400W
Temperature range: room temperature, 0-399??
Time control: 0-999sec
Printing area: 380mmx380mm(15"x15")
Size of machine: 60x38x30cm
Weight: 33Kg
Realtime display of temperature condition: automatic alarm

Feature

1. Electronic equipment control the temperature, high veracity.
2. The heated thread and heated board are together, safe,durable,distribute uniformity.
3. The plating motherboard is titanium fluating,prevent mucosity.
4. The motherboard is pure aluminium.The function is perfect.
5. The electronic equipment control the time, denote the singal when finish.
6. Adjust the presure anytime, convenient, fast.
7. The silicon pastern in the motherboard can endure high temperature, not change the shape until it is 400 centigrade.

Certification: CE

YAR 02

Product Description

This american type pyrograph making equipment is the specialized equipment for transferring various heat transference calico paper. It is mainly used to pyrograph, transfer, iron out, heat treat the cloth, and increase fastness between printing paste, frothing paste and cloth. Large-sized heat transference machine is also suitable for heat sublimation transference of team wear, knitted sweater, umbrella, ceramics, glass and metal plate, as well as some elaborate products personally processed.



Specification

Voltage: 220V, 110V
Power: 1400W
Temperature range: room temperature, 0-399??
Time control: 0-999 sec
Printing area: 380mmx380mm(15"x15")
Size of machine: 60x38x30cm
Weight: 35Kg
Realtime display of temperature condition: automatic alarm

Feature

1. Electronic equipment control the temperature, high veracity.
2. The heated thread and heated board are together, safe,durable,distribute uniformity.
3. The plating motherboard is titanium fluating,prevent mucosity.
4. The motherboard is pure aluminium.The function is perfect.
5. The electronic equipment control the time, denote the singal when finish.
6. Adjust the presure anytime, convenient, fast.
7. The silicon pastern in the motherboard can endure high temperature, not change the shape until it is 400 centigrade.

Certification: CE

YAR 01

Product Description

This machine can transfer the photos on T-shirt cotton, hemp, and chemical fiber etc, also it can make the silkscreen printing, glue slurry and other technical heat treatment, and also bake the photo of human being, scene and color mark on the porcelain board, metal board. It is specially suited to make the medal, commemorate cards, gravestone photo, and T-shirts etc. it has the competitive price and also popular used.





Specification

Current voltage: 110V/220V
Power: 1400W
The range of the temperature:0-399??
Time of rising temperature:10-15Min
Range of time: 0-999sec
Baking area: 380mmx380mm (15"x15"��?
Weight: 30KG

Feature

1. Electronic equipment control the temperature, high veracity.
2. The heated thread and heated board are together, safe,durable,distribute uniformity.
3. The plating motherboard is titanium fluating,prevent mucosity.
4. The motherboard is pure aluminium.The function is perfect.
5. The electronic equipment control the time, denote the singal when finish.
6. Adjust the presure anytime, convenient, fast.
7. The silicon pastern in the motherboard can endure high temperature, not change the shape until it is 400

Certification: CE

YAR TH

Feature

1. Digital control by the SCM program ensures temperature will be monitored digitally with high precision and sensitivity.
2. LCD displays show the temperature value and time.
3. Easy parameter setting.
4. 70?? open of heating plate,convenient for operation very much.
5. Integrated electric control system for simply adjusting and maintenance.
6. Dual electric system protection provides safety  operation.



Parameter

Two colors: dark blue and white
Heating plate size: 380x380mm

Application

Digital heat transfer pressing system: Let computer be the platform, process pictures or images from digital camera or scanner, then print them through laser printer. Afterward, you can transfer the pictures or images on the substrate such as T-shirt, handkerchief, towel, bag, kitbag, socks and so on.

Certification: UL

YAR 0TH

Feature

1. Digital control by the SCM program ensures temperature will be monitored digitally with high precision and sensitivity.
2. LCD displays show the temperature value and time.
3. Easy parameter setting.
4. 70?? open of heating plate,convenient for operation very much.
5. Integrated electric control system for simply adjusting and maintenance.
6. Dual electric system protection provides safety operation.



Parameter

Heating plate size:380x280mm

Application

Digital heat transfer pressing system : Let computer be the platform, process pictures or images from digital camera or scanner, then print them through laser printer. Afterward,you can transfer the pictures or images on the substrate such as T-shirt, handkerchief, towel, bag, kitbag, socks and so on.

Certification: UL
